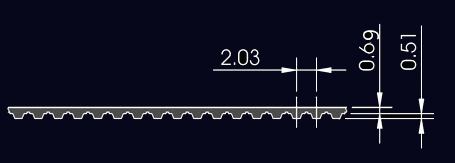

聚氨酯同步带MXL
| Types | Teeth | Width | Length | Types | Teeth | Width | Length |
| MXL(Pitch=2.032mm) | MXL(Pitch=2.032mm) | ||||||
| MXL-50 | 50 | 150 | 101.60 | MXL-122 | 122 | 150 | 247.90 |
| MXL-53 | 53 | 150 | 107.70 | MXL-123 | 123 | 150 | 247.94 |
| MXL-64 | 64 | 150 | 130.05 | MXL-126 | 126 | 150 | 256.03 |
| MXL-65 | 65 | 150 | 132.08 | MXL-127 | 127 | 150 | 258.06 |
| MXL-71 | 71 | 150 | 144.27 | MXL-132 | 132 | 150 | 268.22 |
| MXL-75 | 75 | 150 | 152.40 | MXL-134 | 134 | 150 | 272.29 |
| MXL-75 | 76 | 150 | 154.43 | MXL-150 | 150 | 150 | 304.80 |
| MXL-80 | 80 | 150 | 162.56 | MXL-155 | 155 | 150 | 304.80 |
| MXL-90 | 90 | 150 | 182.88 | MXL-174 | 174 | 150 | 353.57 |
| MXL-92 | 92 | 150 | 186.95 | MXL-192 | 192 | 150 | 390.14 |
| MXL-93 | 93 | 150 | 188.98 | MXL-195 | 195 | 150 | 396.24 |
| MXL-96 | 96 | 150 | 195.07 | MXL-210 | 210 | 150 | 426.72 |
| MXL-97 | 97 | 150 | 197.10 | MXL-232 | 232 | 150 | 471.42 |
| MXL-98 | 98 | 150 | 199.14 | MXL-234 | 234 | 150 | 475.49 |
| MXL-100 | 100 | 150 | 203.20 | MXL-245 | 245 | 150 | 497.84 |
| MXL-102 | 102 | 150 | 207.26 | MXL-268 | 268 | 150 | 544.58 |
| MXL-105 | 105 | 150 | 213.36 | MXL-270 | 270 | 150 | 548.64 |
| MXL-110 | 110 | 150 | 223.52 | MXL-280 | 280 | 150 | 568.96 |
| MXL-112 | 112 | 150 | 227.58 | MXL-312 | 312 | 150 | 633.98 |
| MXL-114 | 114 | 150 | 231.65 | MXL-378 | 378 | 150 | 768.10 |
| MXL-119 | 119 | 150 | 241.81 | DMXL-120 | 120 | 150 | 243.84 |
| MXL-120 | 120 | 150 | 243.84 | DMXL-390 | 390 | 150 | 792.48 |
